This page explains how to create a simple `vehicle.lua` file, primarily intended for AI-controlled trains in SubwaySim 2.

A simple `vehicle.lua` usually defines:

• Vehicle metadata (name, author, IDs)
• Basic physical parameters (mass, length, vmax)
• Blueprint references
• Coupling definitions
• Braking systems
• Basic lights and audio
• Train compositions for AI

For a detailed explanation of a fully featured and player-drivable vehicle, see:

• Complex Vehicle.lua

The following example is based on the GI1E (Gisela) AI vehicle used in the SubwaySim base game.

Because the original file is not publicly downloadable, the full structure is shown below and explained step by step in separate sections.

vehicle.lua

---@type RailVehicle_DataTable
local GI1E_a = {
	contentType		= "railVehicle",
	contentName		= "Berlin_GI1E_a",

	title			= "GI1E",
	author			= "$GameDeveloper",

	emptyMass		= 37.0,
	vmax			= 70,

	length			= 12.64,
	frontToFirstBogie	= 2.53,
	rearToLastBogie		= 2.53,

	maxEnginePower		= 480,
	maxEngineForce		= 50,

	blueprintFilename	= "/SubwaySim_Berlin/Vehicles/GI1E/BP_GI1E_A.BP_GI1E_A",

	couplingFront		= {
		rotationOrigin		= "Coupling_F",
		couplingOffset		= 0.985,
		automaticCoupling	= true,
		skeletalMesh		= "Exterior",
		couplingBoneName	= "Coupling_Rotation1",
	},
	couplingRear		= {
		rotationOrigin		= "Coupling_B",
		couplingOffset		= 0.985,
		automaticCoupling	= true,
		skeletalMesh		= "Exterior",
		couplingBoneName	= "Coupling_Rotation2",
	},

	-- players shouldn't try to attach this vehicle
	cameras				= {
		exteriorCameras	= {},
	},

	brakingSystems		= {
		pneumatic5bar	= {
			maxBrakeForce	= 60,
		},
		electric		= {
			maxBrakeForce	= 50,
			maxBrakePower	= 480,
		},
	},

	components = {
		LightManager,
		VehicleNumber,
		AudioManager,
		Berlin_PIS,
	},

	audio = {
		audioBogieAI = {
			{
				audioComponent = "AiAudio",
			},
		},
	},

	lights = {
		headLights = {
			{
				direction			= 1,
				headlightElements	= {
					{
						mesh			= "Exterior",
						materialSlot	= "GI1E_LightsExterior_mat",
						materialParams	= {
							["Emissive01"] = 100,
						},
						lightComponents	= {
							{lightComponent ="Headlight1", intensity = 50, temperature = 4500, attenuationRadius = 500, innerConeAngle = 0, outerConeAngle = 70},
							{lightComponent ="Headlight2", intensity = 50, temperature = 4500, attenuationRadius = 500, innerConeAngle = 0, outerConeAngle = 70},
						},
					},
				},
			},
		},
		tailLights = {
			{
				mesh			= "Exterior",
				materialSlot	= "GI1E_LightsExterior_mat",
				direction		= -1,
				materialParams	= {
					["Emissive02"] = 100,
				},
			},
		},
	},

	---@type Berlin_PIS_DataTable
	PIS = {
		destinationDisplays	= {
			{
				componentName	= "ZZA",
				direction		= 1,
			},
		},

		announcementNextStop		= {},
		announcementTerminus		= {
			"/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/General_Termination01.General_Termination01",
		},
		announcementExitLeft		= {},
		announcementExitRight		= {
			"/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/General_ExitRight.General_ExitRight",
		},
		announcementBell			= {
			"/SubwaySim_Berlin/Vehicles/Shared/Audio/Gong/Berlin_Standardgong_MasterV1_kurz.Berlin_Standardgong_MasterV1_kurz",
		},
		announcementTerminusBell	= {
			"/SubwaySim_Berlin/Vehicles/Shared/Audio/Gong/Berlin_Infogong_MasterV2_kurz.Berlin_Infogong_MasterV2_kurz",
		},
		announcementDelay					= 1.2,
		defaultDestinationAnnouncement		= "/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/Destination_General.Destination_General",
		destinationAnnouncementByLine		= {
			["U1"]	= "/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/Destination_U1.Destination_U1",
			["U2"]	= "/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/Destination_U2.Destination_U2",
			["U3"]	= "/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/Destination_U3.Destination_U3",
			["U4"]	= "/SubwaySim_Berlin/Vehicles/Shared/Audio/Announcements/Destination_U4.Destination_U4",
		},

		audioComponent				= "PIS_Audio",
		autoTerminateAnnouncement	= false,
	},

	vehicleNumber = {
		labels	= {
			{
				mesh			= "Exterior",
				materialSlot	= "DecalDigits_mat",
			},
		},
		poolName		= "Berlin_GI1E",
		poolValueMin	= 1070,
		poolValueMax	= 1094,
	},
};

---@type RailVehicle_DataTable
local GI1E_b 					= TableUtil.deepCopy(GI1E_a);
GI1E_b.components 				= GI1E_a.components; -- TODO
GI1E_b.contentName 				= "Berlin_GI1E_b";
GI1E_b.blueprintFilename 			= "/SubwaySim_Berlin/Vehicles/GI1E/BP_GI1E_B.BP_GI1E_B";
GI1E_b.lights.headLights			= nil;
GI1E_b.lights.tailLights			= nil;
GI1E_b.couplingFront.couplingBoneName		= "Coupling_Rotation3";
GI1E_b.couplingRear.couplingBoneName		= "Coupling_Rotation4";

---@type TrainComposition_DataTable
local GI1E_1x = {
	contentType		= "trainComposition",
	contentName		= "Berlin_GI1e_1x",

	title			= "GI1e x1",
	author			= "Simuverse GmbH",

	-- not required for AI trains
	description			= "",
	previewFilename 	= "",
	hidden 				= true,

	vehicles		= {
		{
			contentName	= "Berlin_GI1E_a",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= false,
		},
		{
			contentName	= "Berlin_GI1E_a",
			forward		= false,
		},
	},
};

---@type TrainComposition_DataTable
local GI1E_2x = {
	contentType		= "trainComposition",
	contentName		= "Berlin_GI1e_2x",

	title			= "GI1e x2",
	author			= "Simuverse GmbH",

	-- not required for AI trains
	description			= "",
	previewFilename 	= "",
	hidden 				= true,

	vehicles		= {
		{
			contentName	= "Berlin_GI1E_a",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= false,
		},
		{
			contentName	= "Berlin_GI1E_a",
			forward		= false,
		},
		{
			contentName	= "Berlin_GI1E_a",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= true,
		},
		{
			contentName	= "Berlin_GI1E_b",
			forward		= false,
		},
		{
			contentName	= "Berlin_GI1E_a",
			forward		= false,
		},
	},
};

g_contentManager:addContent(GI1E_a);
g_contentManager:addContent(GI1E_b);
g_contentManager:addContent(GI1E_1x);
g_contentManager:addContent(GI1E_2x);

Now we will go through the `RailVehicle_DataTable` step by step.

The `RailVehicle_DataTable` contains the core configuration of a vehicle. It defines all information required so the game can correctly:

• load the vehicle Blueprint,
• place the vehicle on the track,
• apply physics and braking,
• configure couplings,
• and register audio, lights, and additional Lua components.

In this example, the DataTable is stored in a local Lua table called `GI1E_a`.

---@type RailVehicle_DataTable
local GI1E_a = {

These fields define what the vehicle is and how it appears inside the content system.

These values define physical base properties and basic performance.

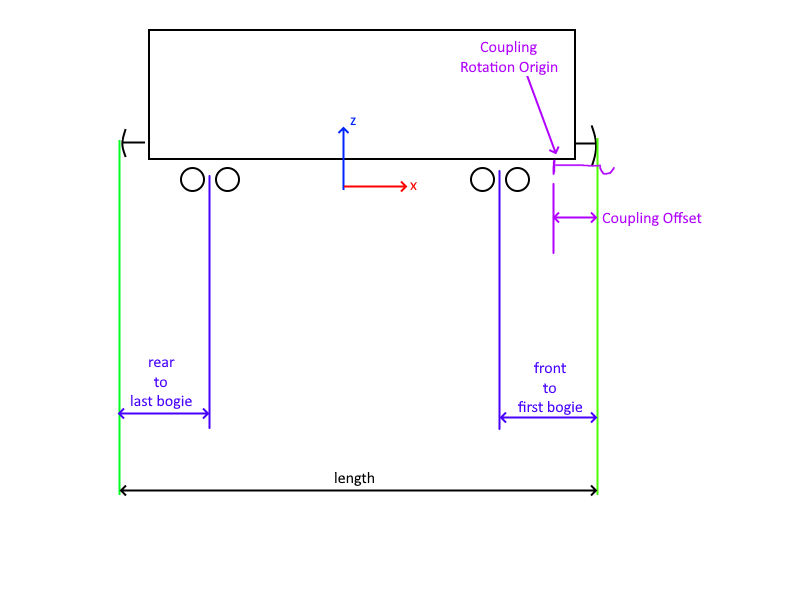

These values are critical for correct placement on the track and correct bogie positioning.

These values define the maximum propulsion capability of the vehicle.

This defines which Unreal Blueprint is loaded for this vehicle.

This section is crucial for:

• correct vehicle placement on the rail,
• correct coupling rotation,
• automatic coupling behavior in consists.

The front coupling:

couplingFront = {
    rotationOrigin     = "Coupling_F",
    couplingOffset     = 0.985,
    automaticCoupling  = true,
    skeletalMesh       = "Exterior",
    couplingBoneName   = "Coupling_Rotation1",
},

The rear coupling works the same way:

couplingRear = {
    rotationOrigin     = "Coupling_B",
    couplingOffset     = 0.985,
    automaticCoupling  = true,
    skeletalMesh       = "Exterior",
    couplingBoneName   = "Coupling_Rotation2",
},

Defines exterior cameras if the vehicle supports them. For AI vehicles, this is typically empty.

cameras = {
    exteriorCameras = {},
},

Defines available brake systems and their maximum forces.

brakingSystems = {
    pneumatic5bar = {
        maxBrakeForce = 60,
    },
    electric = {
        maxBrakeForce = 50,
        maxBrakePower = 480,
    },
},

This list defines which Lua components are attached to the vehicle.

components = {
    LightManager,
    VehicleNumber,
    AudioManager,
    Berlin_PIS,
},

Defines which Blueprint Audio Component is used for AI bogie sound playback.

audio = {
    audioBogieAI = {
        {
            audioComponent = "AiAudio",
        },
    },
},

This section defines headlights and taillights, including:

• which direction they apply to,
• which mesh + material slot is affected,
• which emissive parameters are set,
• and which Light Components are controlled.

Headlights example:

headLights = {
    {
        direction = 1,
        headlightElements = {
            {
                mesh = "Exterior",
                materialSlot = "GI1E_LightsExterior_mat",
                materialParams = {
                    ["Emissive01"] = 100,
                },
                lightComponents = {
                    {lightComponent ="Headlight1", intensity = 50, temperature = 4500, attenuationRadius = 500, innerConeAngle = 0, outerConeAngle = 70},
                    {lightComponent ="Headlight2", intensity = 50, temperature = 4500, attenuationRadius = 500, innerConeAngle = 0, outerConeAngle = 70},
                },
            },
        },
    },
},

Taillights example:

tailLights = {
    {
        mesh = "Exterior",
        materialSlot = "GI1E_LightsExterior_mat",
        direction = -1,
        materialParams = {
            ["Emissive02"] = 100,
        },
    },
},

The PIS section defines:

• which destination display components exist,
• which announcement audio files are used,
• the audio component for playback,
• and additional announcement logic settings.

Key elements:

• `destinationDisplays` defines display components (e.g. `ZZA`)
• audio lists define announcement file assets
• `audioComponent` defines the Blueprint Audio Component used for announcements

(Your provided PIS block remains valid and can be explained further in the next section.)

Defines how vehicle numbers are generated and displayed.

vehicleNumber = {
    labels = {
        {
            mesh = "Exterior",
            materialSlot = "DecalDigits_mat",
        },
    },
    poolName     = "Berlin_GI1E",
    poolValueMin = 1070,
    poolValueMax = 1094,
},

In this section, we create a variant of an existing vehicle by copying an already defined `RailVehicle_DataTable` and adjusting only the values that differ.

This approach is very common and highly recommended, especially for:

• A- and B-cars
• Direction-dependent variants
• Slightly different vehicle bodies sharing the same base configuration

Instead of defining the entire vehicle again, we reuse the existing data.

---@type RailVehicle_DataTable
local GI1E_b = TableUtil.deepCopy(GI1E_a);

This line creates a deep copy of the previously defined vehicle `GI1E_a`.

Important points:

• All values from `GI1E_a` are copied into `GI1E_b`
• Nested tables (lights, brakes, couplings, etc.) are copied as well
• Changes made to `GI1E_b` do not affect `GI1E_a`

This gives us a fully independent vehicle configuration that starts as a 1:1 copy.

GI1E_b.components = GI1E_a.components; -- TODO

Here, the component list is explicitly reused.

This means:

• Both vehicles use the same Lua components (LightManager, AudioManager, PIS, etc.)
• This is safe as long as the component behavior is identical
• The comment `– TODO` indicates that this could be changed later if needed

This avoids unnecessary duplication of identical component lists.

GI1E_b.contentName = "Berlin_GI1E_b";

Each vehicle must have a unique `contentName`.

Even though `GI1E_b` is based on `GI1E_a`, it must be registered as a separate vehicle in the Content Manager.

This name is later used:

• in train compositions
• when spawning vehicles
• internally by the game

GI1E_b.blueprintFilename = "/SubwaySim_Berlin/Vehicles/GI1E/BP_GI1E_B.BP_GI1E_B";

The B-car uses a different Vehicle Blueprint.

Typical reasons for this:

• Different interior layout
• No driver cab
• Different light setup
• Different coupling setup

Even though most logic is shared, the physical Blueprint can differ.

GI1E_b.lights.headLights = nil;
GI1E_b.lights.tailLights = nil;

In this case, the B-car does not have its own headlights or taillights.

By setting these entries to `nil`:

• The light definitions inherited from `GI1E_a` are removed
• The vehicle will not attempt to control head- or taillights
• This prevents duplicated or incorrect lighting inside a train consist

This is typical for intermediate cars in a multiple-unit train.

GI1E_b.couplingFront.couplingBoneName = "Coupling_Rotation3";
GI1E_b.couplingRear.couplingBoneName  = "Coupling_Rotation4";

The B-car uses different coupling bones than the A-car.

Reasons for this include:

• Different skeleton layout
• Additional coupling bones for internal train connections
• Separate animation channels for different couplers

Only the bone names are changed — all other coupling parameters remain the same.

Using `TableUtil.deepCopy` keeps your Lua files clean, maintainable, and easy to extend when creating multiple vehicle variants.

At the end of the file comes one of the most important parts: Train compositions and the registration of all DataTables in the Content Manager.

Without these steps, the game would know that the vehicle exists as a data table — but it would not know:

• how to spawn it as a full train consist,
• and it would not load the content at all.

A `TrainComposition_DataTable` defines a complete train consist (multiple vehicles in a fixed order).

AI trains in SubwaySim 2 are usually spawned using train compositions, not single vehicles.

That is why this section is essential for AI vehicles.

---@type TrainComposition_DataTable
local GI1E_1x = {
    contentType     = "trainComposition",
    contentName     = "Berlin_GI1e_1x",

    title           = "GI1e x1",
    author          = "Simuverse GmbH",

    -- not required for AI trains
    description         = "",
    previewFilename     = "",
    hidden              = true,

    vehicles = {
        { contentName = "Berlin_GI1E_a", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = false },
        { contentName = "Berlin_GI1E_a", forward = false },
    },
};

The most important part is the `vehicles = { … }` block.

Each entry uses:

This is where you can clearly see why `contentName` is so important: It acts as the unique key that links your vehicle DataTables into a full train consist.

The 2x consist simply repeats the same unit again, resulting in a longer AI train.

---@type TrainComposition_DataTable
local GI1E_2x = {
    contentType     = "trainComposition",
    contentName     = "Berlin_GI1e_2x",

    title           = "GI1e x2",
    author          = "Simuverse GmbH",

    -- not required for AI trains
    description         = "",
    previewFilename     = "",
    hidden              = true,

    vehicles = {
        { contentName = "Berlin_GI1E_a", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = false },
        { contentName = "Berlin_GI1E_a", forward = false },

        { contentName = "Berlin_GI1E_a", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = true  },
        { contentName = "Berlin_GI1E_b", forward = false },
        { contentName = "Berlin_GI1E_a", forward = false },
    },
};

At the very end, we must register all content tables so SubwaySim 2 actually loads them.

g_contentManager:addContent(GI1E_a);
g_contentManager:addContent(GI1E_b);
g_contentManager:addContent(GI1E_1x);
g_contentManager:addContent(GI1E_2x);

This does two things:

• It tells the game: “These DataTables exist and should be loaded.”
• It makes the `contentName` entries usable by the spawning and AI systems.

Important:

• We pass the local Lua variables here (e.g. `GI1E_a`), not the string names.
• If you forget to register a table, it will not exist in the game content system.

• `RailVehicle_DataTable` defines single vehicles
• `TrainComposition_DataTable` defines AI train consists
• `g_contentManager:addContent(…)` is required so SubwaySim 2 loads the vehicles and compositions at all

With this section completed, the vehicle and its AI train compositions are fully registered and can be used by SubwaySim 2.

This page covered the setup of a simple vehicle.lua, mainly intended for AI-operated trains.

If you want to create more advanced vehicles — such as player-driven trains, vehicles with interactive cabs, advanced systems, or extended logic — you will find further detailed information in the following chapters:

• Complex Vehicle Blueprint

Learn how to build advanced vehicle Blueprints with interactive components, cab logic, and extended systems.

• Complex Vehicle.lua

Explore advanced Lua setups including player controls, extended systems, and complex vehicle behavior.

These chapters expand on the foundations explained here and guide you step by step towards fully-featured, player-ready vehicles.
